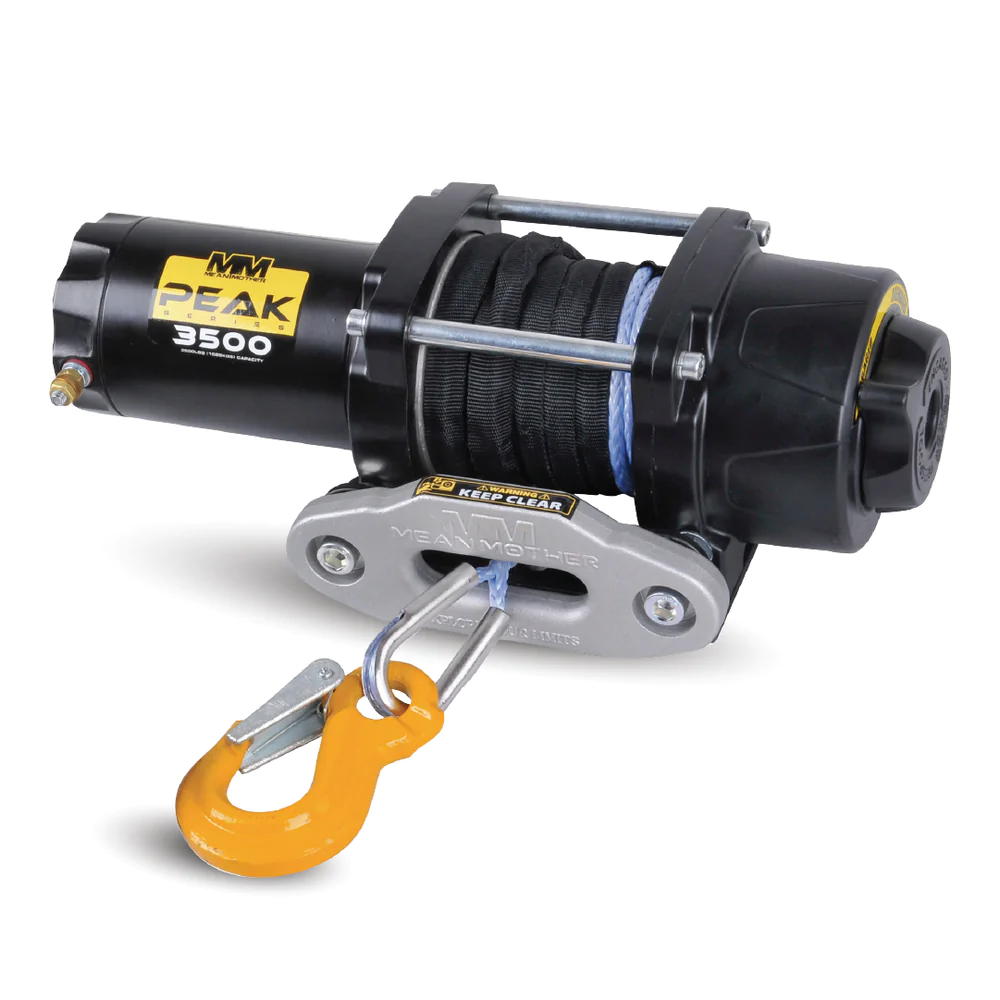

Peak ATV 3500Lb

Mean Mother ATV 3500lb winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles.

The 2500lb and 3500lb models are supplied with a universal mounting plate for easy installation. Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).

WHY OUR PEAK ATV WINCHES ARE REALLY GOOD

• Forward and reverse operation with Free spool function
• Two Stage Planetary quality components – Sintered Steel Bushes & Hardened Steel Gears
• Waterproof contactor (solenoid) system. Permanently mounts to ATV.
• Waterproof quality plug with protective cap.
• Mountable handle bar Forward and reverse toggle switch.
• Each synthetic rope is fitted with a stainless steel thimble with crush tubing for maximum eyelet strength.
• Dyneema® is a safer and lighter option than wire cable, and is regarded as the ultimate in performance.

WHAT’S IN THE BOX

• Winch
• Winch mounting plate
• Solenoid (contactor)
• Handle bar switch with mounting bracket
• Power cable kit
• 4.76mm x 15m, Genuine Dyneema® SK75
• Hawse Fairlead
• 6/6″ Clevis Hook
• Hand Saver Hook Strap
• Detailed Instruction Manual
• Warranty registration Card
• Winch and Fairlead Mounting Hardware (Bolts, washer and Nuts)

GENERAL INFORMATION

• Specifications – 3500lb (1589kg)
• Voltage – 12 Volt
• Gear Ratio – 242:1
• Gear Tran – 2 Stage Planetary
• Clutch – Turn 90° by handle
• Motor Type – Permanent magnet
• Motor – 3.5 Hp, 2.61 Kw
• Control – Handle bar mountable switch, 2.4m lead
• Braking – Self stocking brake
• Drum Size – 50mm x 80mm(2.5″ x 3.15″)
• Cable – Genuine Dyneema® SK75 – 4.76mm x 15 Metres (3/16″ x 50′)
• Clevis Hook – 6/6″
• Overall Dimensions – 344.5mm x 116mm x 114mm (13.5″ x 4.57″ x 4.5″)
• Net Weight – 10.5kg
• Mounting Bolt Pattern – 124mm x 76mm (4.88″ x 3″)
• Battery Power Cables – 2 x 2350mm x 10mm²
• Motor Power Cables – 1 x 600mm x 10mm² & 1 x 450mm x 10mm²
• Recommended Battery – Minimum 650CCA
• Finish – Powder Coating

Performance of 1st Layer

• Line Pull – Line Speed – Motor Amp – Draw Current
• 0 lbs 0 kgs – 18.4 Fpm 5.6 Mpm – 30 – 12 Volt
• 1000 lbs 454 kgs – 15 Fpm 4.6 Mpm – 86 – 12 Volt
• 2000 lbs 907 kgs – 13.1 Fpm 4 Mpm – 136 – 12 Volt
• 3500 lbs 1589kgs – 9.8 Fpm 3 Mpm – 230 – 12 Volt

Line Pull & Cable Capacity by Layer
Cable Layer – Rated Line Pull – Cable Capacity
1 – 3500 lbs 1589 kgs – 9.2 Feet 2.8 Metres
2 – 2900 lbs 1317kgs – 20.3 Feet 6.2 Metres
3 – 2500 lbs 1135 kgs – 33.1 Feet 10.1 Metres
4 – 2200 lbs 1000 kgs – 47.6 Feet 14.5 Metres
5 – 1900 lbs 863 kgs – 50 Feet 15 Metres
